Product description

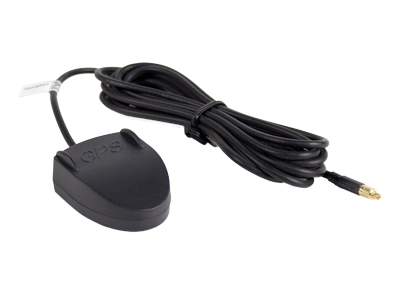

Antenna GPS ausiliaria per ricevitori satellitari.Il prodotto viene fornito con 5 metri di cavo schermato e connettore MMCX. E' compatibile con il prodotto HBTGPS. Risulta indispensabile se si vuole installare un ricevitore satellitare su un automobile. I 5 metri di cavo consentono di effettuare il cablaggio in maniera perfetta
Specifiche
- Input Voltage: 3.3 V
- PreAmp. Gain at Fo (min.): 26 dB ± 1 dB
- Current consumption (typ.): 7.5 mA
- Output V. S. W. R. at Fo (max.): 1.6
- Impedence (typ.): 50 ohm
- Fo: 1575.42 MHz
- Bandwidth: 2.046 MHz
- Operation Temperature: -40° - + 85° C
- Storage Temperature: -40° - +90° C
- Relative Humidity: 0% - 80%
- Input Voltage: 2.5V - 5.0V
- Dimension: 43 x 33 x 13.3 mm ( L x W x H )
- Weight: 23 g
- Water Proof: 100% water proof
- Fixed Metod: Magnet on Bottom
- Cable: 5 meter RG 174/U
- Output Connector: MMCX
Ant + PreAmp
- Input Voltage: 3.3 V
- System Gain at Fo without cable loss (min): 29 dBi at 90°
- Current consumption (typ.): 7.5 mA
- Output V. S. W. R. at Fo (max): 2
- Impedance (typ.): 50 ohm
- Cable loss RG 174/3,5,10 meters at Fo: 4,7,14dB
Patch Antenna
- Polarization: R. H. C. P.
- Gain at Fo (typ.): 30dBi at 90° elevation
- V. S. W. R. at Fo (max.): 2
- Impedance (typ.): 50 ohm
Le specifiche e le caratteristiche esteriori sono indicative e possono variare senza obbligo di preavviso.
