Product description

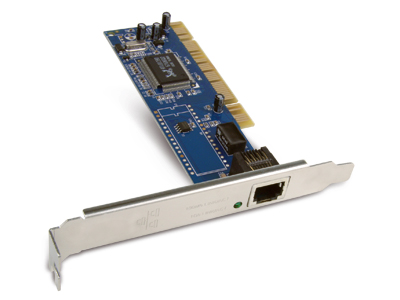

La scheda di rete Hamlet 10/100Mbps è un adattatore PCI ad alta
velocità con porta RJ-45 ad auto-negoziazione 10/100, supporto
full/duplex.
In modalità full-duplex, la velocità può raggiungere i
20/200Mbps.
Caratteristiche del prodotto
- Connessione 10/100Mb autonegoziante
- Standard IEEE 802.3 / IEEE 802.3 U
- Connettore RJ45
- Specifiche PCI Local Bus Rev.2.1 & 2.2
- Supporta ACPI, PCI power management
- Drivers per: Windows 95/98/WMe/NT 3.51/NT4.0/Win.2000, Novell Netware 312/3.2/4.1x/5.0, Linux, SCO Unix, compatibile Windows XP (non necessita di driver)
- Led Diagnostici
Technical Specification
- Standards Compliance: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX
- Bus Type: PCI 2.1 & 2.2
- Interrupt Level: Interrupt line INTA, which conforms with the PCI specification
- Host Data Bus Architecture: 32-bit Bus Mastering
- Access Method: CSMA/CD
- Topology: Star
- Transmit/Receive Buffer: 4KB (2KB Transmit, 2KB Receive)
- Transmission Media: 10BASE-T Cat. 3,4,5 UTP/STP Cable, 100BASE-TX Cat. 5 UTP/STP Cable
- Safety Certificates: CE & FCC-A
- LED Status: Link /Activity, Full Duplex
- Humidity: 10% ~90% RH (Non-condensing)
- Temperature: 10°C~ 70°C(Store) 0°C~55C (Operation)
- Dimension: 440mm x 220mm x 44mm (L × W × H)
- Weight: Unpacked: 0.058kg, Packed: 0.28kg.
- Power Consumption: +5V +/- 5% at 300 mA (1.5 Watts)
Contenuto della scatola
- Scheda Fast Ethernet 10/100Mbps
- Guida rapida (Italiano e Inglese)
- Floppy Disk con i drivers
Le specifiche e le caratteristiche esteriori sono indicative e possono variare senza obbligo di preavviso.
