Product description

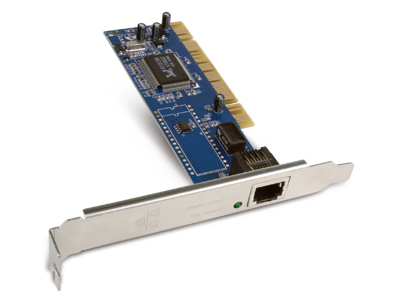

La scheda di rete Hamlet Wake on Lan 10/100Mbps è un adattatore PCI ad alta velocità con porta RJ-45 ad auto-negoziazione 10/100, supporto full/duplex e Wake on Lan. In modalità full-duplex, la velocità può raggiungere i 20/200Mbps.

Caratteristiche del prodotto

• LAN Manager
• Compatibile Plug&Play
• Connettore RJ45
• Specifiche PCI Local Bus Rev.2.1&2.2
• Drivers per: Windows 95/98/NT 3.51/NT4.0/Win.2000/Win XP, Novell Netware 312/3.2/4.1x/5.0, Linux, SCO Unix,
• Led Diagnostici
• Trasmissione dati 10/100 Mbps Modalità Full/Half Duplex Windows Compatibile
• Caratteristiche Wake-On-LAN

Technical Specification

• Standards Compliance: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX
• Bus Type: PCI 2.1 & 2.2
• Interrupt Level: Interrupt line INTA, which conforms with the PCI specification
• Host Data Bus Architecture: 32-bit Bus Mastering
• Access Method: CSMA/CD
• Topology: Star
• Transmit/Receive Buffer: 4KB (2KB Transmit, 2KB Receive)
• Transmission Media: 10BASE-T Cat. 3,4,5 UTP/STP Cable, 100BASE-TX Cat. 5 UTP/STP Cable
• Safety Certificates: CE & FCC-A
• LED Status: Link /Activity, Full Duplex
• Humidity: 10% ~90% RH (Non-condensing)
• Temperature: 10°C~ 70°C(Store)  0°C~55C (Operation)
• Dimension: 440mm x 220mm x 44mm (L × W × H)
• Weight: Unpacked: 0.058kg, Packed: 0.28kg.
• Power Consumption: +5V +/- 5% at 300 mA (1.5 Watts)

Contenuto della scatola:

• Scheda Fast Ethernet 10/100Mbps
• Guida rapida (Italiano e Inglese)
• Floppy Disk Driver
• Cavetto Wake-on-Lan
