Product description

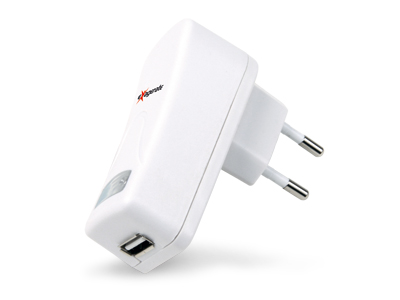

Pratico alimentatore universale in grado di fornire alimentazione a tutti i dispositivi USB. Consente di ricaricare le batterie dei lettori MP3. Telefoni cellulari e altri dispositivi portatili con alimentazione USB. Si collega alla presa 220V fornendo corrente elettrica continua a voltaggio; compatibile con le periferiche USB.

Caratteristiche

• Alimentatore stabilizzato
• Interfaccia USB standard
• Compatibile lettori MP3, Cellulari e PDA
• Compatibile iPod

Specifiche tecniche

Input

• Input range: 100-240VAC(Full Range), 50-60Hz
• Input current (rms): 0.2A 90VAC; 0.4A 264VAC MAX
• Efficiency >75% full load, 115VAC(DC Conversion)
• EMI: FCC Class B, CISRP22 Class B, EN 55022 Class B

Output

• Voltage (Vo): 5V
• Voltage regulation: 5% constant voltage mode
• Current limit: 5% constant current mode
• Maximum power (Po) 5W
• Hold-up time: 10ms typical at full load  115VAC
• Protection: Over voltage protection (OVP), AC recycle;
  Short circuit protection ; Output short circuit protection
  (<0.03 ohm) Auto recovery
• Cable: USB female socket
• Led: With red LED for power indication
• Safety: UL 1950, CSA 22-2-2, TUV En60950, IEC 950, BSMI, PSE, EK-mark, CE EMC&LVD

Environmental

• Operating temperature 0°C to + 40°C ambient
• Storage temperature -10°C to + 70°C
• MTBF:>1,000 hours at full load and 25°C ambient Temperature
• Weight 60g
