Product description

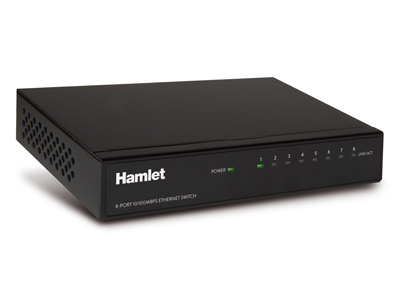

Hamlet HN08S è uno Switch 10/100 Mbit a 8 porte in grado di gestire in modo intelligente il traffico sulla rete. Le porte sono schermate e dotate di protocollo 10/100 con adattamento automatico della velocità.
Caratteristiche
- 8 Porte 10/100Mbps Switch
- Autonegoziazione della velocità (10/100Mbps)
- Facile installazione Plug & Play
- Dimensioni ridotte
- Case esterno in metallo
- Led per la diagnostica
Specifiche tecniche
- Standards Compliance:
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX - Number Of Ports: 8 integrated ports (10/100Mbps Nway port)
- Fully Flow Control Supported:
Half-duplex mode: Backpressure
Full-duplex mode: IEEE 802.3x - Network Transmission Media
10BASE-T Cat. 3, 4, 5 UTP/STP
100BASE-TX Cat. 5 UTP/STP - Network Status Monitoring LEDs
Per port: LINK/ACT, 10/100M
System: POWER - Buffer Memory: 512Kbits
- MAC Address: Up to 1K per device
- Power Adapter: Power DC 7.5V
- Power Consumption: 4 Watts (Max)
- Operating Temperature: 0°C ~ 55°C
- Store Temperature: -20°C ~ 90°C
- Humidity: 10% ~90% RH (Non-condensing)
- Dimension (L x W x H): 130mm x 78mm x 24mm
- Weight: 0.35Kg
- Safety & EMI Certificates: CE & FCC-B
Contenuto della scatola
- Switch 8 Porte 10/100Mbps
- Guida rapida (Italiano e Inglese)
- Alimentatore esterno (7.5V-1A)
Le specifiche e le caratteristiche esteriori sono indicative e possono variare senza obbligo di preavviso.
